Over-current protection is required in the photovoltaic power circuit, photovoltaic output circuit, inverter output circuit, and battery conductors for all applications that comply with the National Electrical Code. Golden offers a variety of fuse technologies designed to protect solar photovoltaic systems from circuit failure events.
For over-current protection of photovoltaic systems, Golden provides a safe, reliable and economical choice. As Golden's latest generation products in the photovoltaic field, Golden photovoltaic fuses can have both low overcurrent protection and high short circuit current protection according to the special electrical characteristics of photovoltaic power generation systems. Comply with IEC and UL standards, CFPV cylindrical fuses can protect against the overload current and the short current produced by PV system.
Application
Photovoltaic applications
PV string/array level protection
1000V string inverter
1000V combiner box
1000V array combiner box
High-strength ceramic body
Pure silver fuse link element
Compact fuse size
Low watts loss
| Product Series | CFPV1038 |
| Voltage | Up to 1000Vdc |
| Current | Up to 32A |
| Breaking Capacity | 20kA |
| Time constant | 1-3ms |
| Operating class | IEC60269-6 gPV class UL UL® Listed to 248-19, Guide JFGA, |
| Country of Origin | China |
| Product Series | CFPV1451 |
| Voltage | Up to 1000Vdc |
| Current | Up to 50A |
| Breaking Capacity | 20kA |
| Time constant | 1-3ms |
| Operating class | IEC60269-6 gPV class UL UL® Listed to 248-19, Guide JFGA, |
| Country of Origin | China |
| Model | Rated Current (A) | I² T(A² S) |
| Pre-arcing | Total |

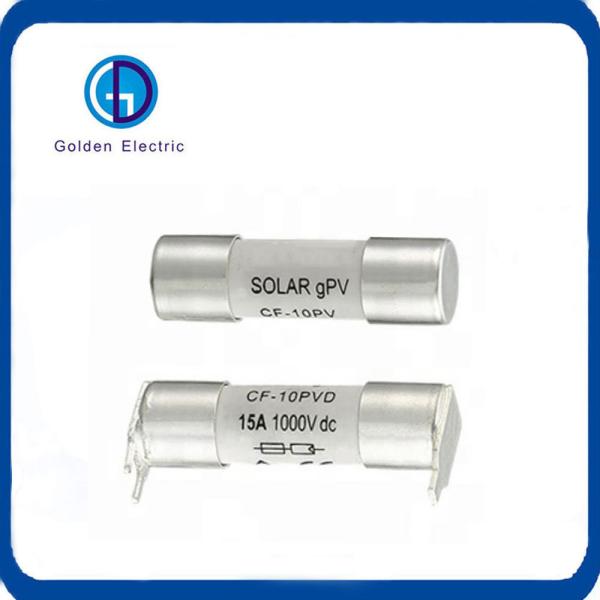

| CF-10PV | 1 | 0.15 | 0.4 |
| CF-10PV | 2 | 1.2 | 3.3 |
| CF-10PV | 3 | 3.9 | 11 |
| CF-10PV | 4 | 10 | 27 |
| CF-10PV | 5 | 18 | 48 |
| CF-10PV | 6 | 31 | 89 |
| CF-10PV | 8 | 3.1 | 31 |
| CF-10PV | 10 | 7.2 | 68 |
| CF-10PV | 12 | 16 | 136 |
| CF-10PV | 15 | 24 | 215 |
| CF-10PV | 16 | 28 | 255 |
| CF-10PV | 20 | 38 | 392 |
| CF-10PV | 25 | 71 | 508 |
| CF-10PV | 30 | 102 | 821 |
| CF-10PV | 32 | 176 | 976 |
- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland,MC4 Connector, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Indicator lamp,Solar Charge Controller,Industrial plug and socket,Busbar Insulator,Meter Socket,Wind Turbine, Terminal Block,Solar product and so on.
- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.
- Golden is always striving hard to provide the best services and competitive price to all customers.
1) Q:How can i trust your company?
A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3) Q:What is the benefits of the fuse?
A:Provides a flexible and worry-free solution. With straight voltage ratings, fuses can be installed in any system independent of its grounding as opposed to slash voltage rated devices that can only be installed on a solidly grounded system.
4) Q:What is the "g" fuse link?
A: (Full-range breaking-capacity fuse-link, formerly general purpose fuse-link) current-limiting fuse-link capable of breaking under specified conditions all currents, which cause melting of the fuse-element up to its rated breaking capacity.
5) Q: What is the operating time of a fuse?
A: Sum of the pre-arcing time and the arcing time.
6) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
7) Q: Your address ?
A: Locates in Guangzhou province, China,welcome to visit us
8) Q:What's the Fuse guarantee?
A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
9) Q:What's about MOQ? Delivery time ?
A: 1pcs for Fuse.
10) Q: What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
