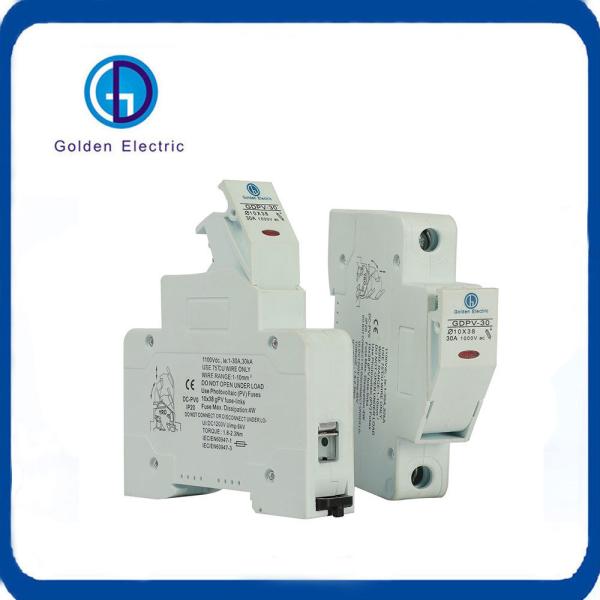

High Breaking Capacity DC Fuse 1000V 30A Ceramic Fuse Base and Holder for Solar PV System

Name: High Breaking Capacity DC Fuse 1000V 30A Ceramic Fuse Base and Holder for Solar PV System
Brand: Golden Electric /OEM
Price: 1 USD

Wholesale High Breaking Capacity DC Fuse 1000V 30A Ceramic Fuse Base and Holder for Solar PV System from china suppliers

Model NO. : GDPV-30

Form of Installation : Insurance Piece Holder

Environmental Protection : Environmental Protection Fuse Holder

Fusing Speed : Fast

Brand : Golden electric /OEM

Working Temperature : "-5°"to +40°

Current : 1A-32A

Voltage : 1000VDC

Standard : High Quality CE&TUV Certificate

Protection Degree : IP20

Biggest Block Ability : 30ka

Ui : DC1200V

Uimp : 6kv

Transport Package : Standard Export Carton

Specification : 1P/2P/3P/4P

Trademark : Golden or netural, or customer brand

Origin : China

HS Code : 8536100000

Supply Ability : 5000/Month

Usage : Electronic, Solar PV System

Material : Ceramic Body

Installation : Circuit Board Type

Type : Panel Installed Fuse Holder

Shape : Square

Size of Fuse : 10X38mm

Customization : Available | Customized Request

Place of Origin : China

Brand Name : Golden Electric /OEM

Certification : ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

MOQ : 1

Packaging Details : Carton/Pallet

Delivery Time : Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, PayPal, Western Union

Contact Now

DC Solar Fuse Application:

A range of 10x38mm fuse links specifically designed for protectin photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).

DC Fuse mainly used in DC combiner box in Solar PV System. When PV panel or inverter caused overload or short circuit, it trip off immediately, to protect PV panels, DC fuse also used to protect other electrical parts in DC circuit, when overload or short circuit.

Ceramic Fuse Link High Quality series of fuse consists of fuse link and fuse base. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The two sides of the fuse use the spot welding to reliably connect with the end plate and to form the cylindrical cap shape structure. Fuse base suppressed by the resin or plastic casing fitted with contacts and contains the fusion pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series of fuse has many merits such as small in size, convenient for installation, safe in usage, beautiful in appearance and so on.

High Breaking Capacity DC Fuse 1000V 30A Ceramic Fuse Base and Holder for Solar PV System

Ceramic Solar DC Fuse PV-30 10A Fuse series of fuse consists of fuse link and fuse base. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The two sides of the fuse use the spot welding to reliably connect with the end plate and to form the cylindrical cap shape structure. Fuse base suppressed by the resin or plastic casing fitted with contacts and contains the fusion pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series of fuse has many merits such as small in size, convenient for installation, safe in usage, beautiful in appearance and so on.

Item	DC Solar Fuse
Model	GDPV-30
Name	FUSE	FUSE HOLDER
Pole	1P	1P
Voltage	≤1000VDC
Current	1A,2A,3A,4A,5A,6A,8A,10A,12A,15A,20A,25A,32A
Biggest block ability(KA)	30KA
Standard	IEC/EN60269
Commection(mm)	2.5-10
Power consumption(W)	3.5
Working Temperature	"-5°"to +40°
Protection Degree	IP20

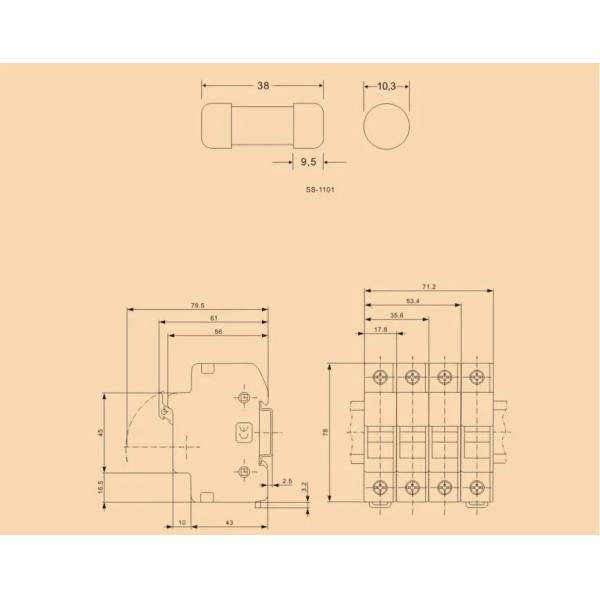

Dimension(W)X(H)X(D)	10X38mm	18X60X78mm
Installation	35MM DIN RAIL
Installation Altitude	≤2000M

High Breaking Capacity DC Fuse 1000V 30A Ceramic Fuse Base and Holder for Solar PV System

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse and fuse holder, Circuit breaker , distribution box , PV combiner box ,surge protector, Timer Switch,Industrial plug and socket,Wind Turbine, Solar product, busbar clamp and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.

1)Q:How can i trust your company?
A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
A: Golden electric is factory for Circuit Breaker,Automatic transfer switch,Surge protector device,distribution box Enclosure, inverter, DC fuse, busbar clamp etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4) Q: Your address ?
A: Locates in Guangzhou province, China,welcome to visit us
5) Q:What's the Fuse, Fuse holder guarantee?
A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6) Q:What's about MOQ? Delivery time ?
A: 1pcs for Fuse holder.
7) Q: What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8) Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !
