CCC Certified IP65 Sheet Metal Enclosure Electronic Project Boxes for Indoor/Outdoor

Name: CCC Certified IP65 Sheet Metal Enclosure Electronic Project Boxes for IndoorOutdoor
Brand: Golden Electric /OEM
Price: 1 USD

Wholesale CCC Certified IP65 Sheet Metal Enclosure Electronic Project Boxes for Indoor/Outdoor from china suppliers

Application Range : Power Plants

Shell Material : Steel Plate

Shell Protection Grade : IP65

Brand : Golden Electric /OEM

Color : Ral7032

Product Name : Power Distribution Cabinet

Name : Power Distribution Control Box

Application : Indoor/Outdoor

Surface : Powder Coating Spray

Thickness : 1.2/1.5/2.0mm(Optional)

Transport Package : Standard Export Carton

Specification : 1200mm*800mm*400mm

Trademark : Golden or netural, or customer brand

Origin : China

HS Code : 8537209000

Supply Ability : 5000/Month

Type : Power Distribution Box

Structure : Protection

Certification : ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Form : All- packaged Type

Operation Voltage : Low Voltage

Size : 1 Uint

Customization : Available | Customized Request

Place of Origin : China

Brand Name : Golden Electric /OEM

MOQ : 1

Packaging Details : Carton/Pallet

Delivery Time : Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, PayPal, Western Union

Contact Now

Metal Floor Standing Cabinets comprise ES 5 folded profile structure, un-welded at the top and bottom of the frame, with removable screws in vertical profiles for strength and versatility with the cabinets. Thermosetting expoxy polyester powder coating in textured RAL 7032.

Product Structure

The mounting plate distance can be moved back and forth to adjust the depth. The lower cable hole is equipped with a group cover, and the front and rear doors are easy to disassemble and operate.

The three cover plates for the cable entry holes on the bottom plate can be replaced with each other and move freely, which is convenient for introducing cables and opening the holes for cable entry.

The base is easy to assemble and disassemble (optional) Surface treatment: degreasing, phosphating, electrophoretic primer, outdoor waterproof plastic powder.

Body color: RAL7032, Mounting plate: orange or galvanized. Mounting plate 2.5mm.

Various sizes can be customized according to customer requirements.

CCC Certified IP65 Sheet Metal Enclosure Electronic Project Boxes for Indoor/Outdoor

Active rail

The mounting plate can be freely adjusted back and forth according to user needs, which is convenient for users to install.

Active cover

The three cover plates for the cable entry holes on the bottom plate can be replaced with each other and move freely, which is convenient for introducing cables and opening the holes for cable entry.

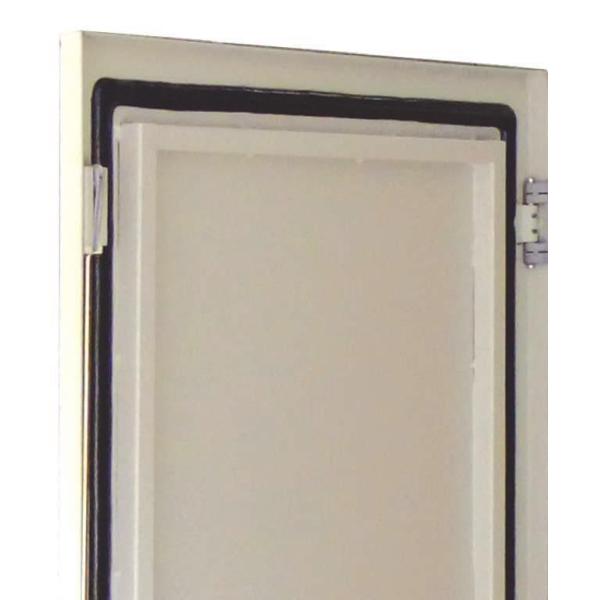

Pouring sealing strip

The sealing strip is cast and formed at one time, and it is self-skinning. It has the advantages of rainproof, fireproof, high temperature resistance, high strength and beautiful appearance.

Model	Dimension(mm)
Model	Height	Width	Depth
GD-2020/150	200	200	150
GD-3025/150	300	250	150
GD-3025/200	300	250	200
GD-3030/150	300	300	150
GD-3030/200	300	300	200
GD-3040/200	300	400	200
GD-4030/150	400	300	150
GD-4030/200	400	300	200
GD-4040/200	400	400	200
GD-4060/250	400	600	250
GD-4060/300	400	600	300
GD-5040/150	500	400	150
GD-5040/200	500	400	200
GD-5040/250	500	400	250
GD-5050/250	500	500	250
GD-6040/150	600	400	150
GD-6040/200	600	400	200
GD-6040/250	600	400	250
GD-6050/150	600	500	150
GD-6050/200	600	500	200
GD-6050/250	600	500	250
GD-6060/250	600	600	250
GD-6060/300	600	600	300
GD-6080/300	600	800	300
GD-7050/200	700	500	200
GD-7050/250	700	500	250
GD-8060/200	800	600	200
GD-8060/250	800	600	250
GD-8060/300	800	600	300
GD-8060/400	800	600	400
GD-8080/200	800	800	200
GD-8080/300	800	800	300
GD-80100/300	800	1000	300
GD-10060/250	1000	600	250
GD-10060/300	1000	600	300
GD-10080/250	1000	800	250
GD-10080/300	1000	800	300
GD-10080/400	1000	800	400
GD-100100/300	1000	1000	300
GD-100120/300	1000	1200	300
GD-12080/300	1200	800	300
GD-12080/400	1200	800	400
GD-120100/300	1200	1000	300

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Wind Turbine, Solar product and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.

1)Q:How can i trust your company?
A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
A: Golden electric is factory for Circuit Breaker,Automatic transfer switch,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4) Q: Your address ?
A: Locates in Guangzhou province, China,welcome to visit us
5) Q:What's the Metal Distribution Box guarantee?
A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6) Q:What's about MOQ? Delivery time ?
A: 1pcs for metal distribution box.
7) Q: What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8) Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !
