Gdq5 Integrated Generator Changeover Switch 4p 3200A 60Hz Frequency

Name: Gdq5 Integrated Generator Changeover Switch 4p 3200A 60Hz Frequency
Brand: Golden Electric /OEM
Price: 1 USD

Wholesale Gdq5 Integrated Generator Changeover Switch 4p 3200A 60Hz Frequency from china suppliers

Certification : ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Place of Origin : China

Brand Name : Golden Electric /OEM

MOQ : 1

Packaging Details : Carton/Pallet

Delivery Time : Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, PayPal, Western Union

Supply Ability : 5000PCS /Week

Model NO. : GDQ5

Type : Integrated automatic transfer switch

Poles : 3p/4p

Output type : Dual

Rated Current : 1A up to 3200A, Depands on Customer

Model Frame : 100A/160A/250A/630A/1000A/1250A/2000A/2500A/3000A

Frequency : 50/60Hz

Operation Voltage : 187~257V Normally 220V/230V 50/60Hz

Changeover Time : 1 Second

Color : White with Blue

OEM : Available

Quality : High Performance

Distributor : Can Be Negotiated

Transport Package : Carton/Wooden Box Packing

Specification : 1A up to 3200A

Trademark : Golden or netural or customer brand

Origin : China

HS Code : 853650000

Package Size : 38.00cm * 30.00cm * 36.00cm

Package Gross Weight : 25.000kg

Warranty : 2 Year

Brand : Industrial

Operation : Electric

Samples : US$ 30/Piece 1 Piece(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Contact Now

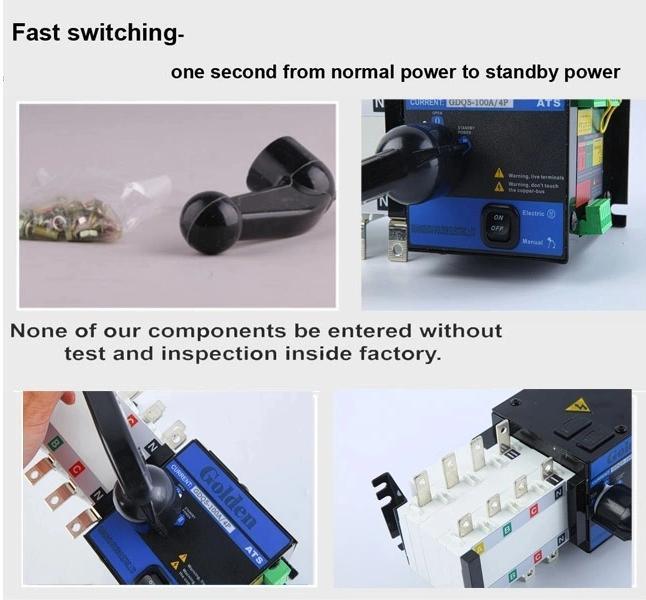

Gdq5 Integrated Generator Changeover Switch 4p 3200A 60Hz Frequency

1A-3200A Type Automatic or Manual Gdq5 Changeover Switch Electric Transfer Switch

GDQ5 Dual Power Automatic Transfer Switch Series is a kind of new automatic transfer switch gathered switch and logic controller,achieve mechanic and electricity turn into a integral whole. It is suitable for using in the distribution equipment in industry and business with rated insulating voltage up to 690V, rated frequency 50Hz/60Hz, rated voltage 380V, conventional heating current up to 3200A ,supplying for switch automatically of Normal power and reserve power in power system or switch automatically and safety isolation of two sets load device etc. It can be used for hospital, shop, bank, high building, coal mine, telecommunication, iron mine, superhighway, airport, industrial flowing water line etc.important situation where disallow power supply failure.
The switch can achieve full-automatic, compulsory "0", remote control, urgent manual-operation;while have lack phase examination and protection, under/over voltage examination and protection, frequency examination and protection and delay regulation, electric mechanism interlock etc. function

Frame Class		100									250					630					1600				3200
Rate current In(A)		16	20	25	32	40	50	63	80	100	125	160	200	225	250	315	350	400	500	630	800	1000	1250	1600	2000	2500	3200
Rated insulation voltage(Ui)		690V														800V
Rated concussion withstand voltage(Uimp)		8KV
Rated working voltage(Ue)		AC440V
Rated short-circuit connection capacity		8KA									17KA					26KA					67.5KA
Rated short-time withstand current(lcw)		5kA/30ms									10kA/60ms					12.6kA/60ms					32kA/60ms
Transfer time I-II or II-I		2.5s																			1.2s			1.8s			2.4s
Using category		AC-33iB
Control voltage		AC220V
Rated frequency	Start	20W									325W					355W					440W				600W
	Normal										62W					74W					98W				120W
Weight(kg) 4Pole		4.2									6.3		10			18			19		46.5		50	55	91	101	111

Item	Specification	PCS/CTN	Item Size(CM)	Carton Size(CM)	K.W.(KG)	N.W.(KG)
GDQ5-100-4P	16-100A	6	251514	383036	25	24
GDQ5-160-4P	125-160A	4	4536.548	4536.548	25.2	24.2
GDQ5-250-4P	180-250A	2	46.344.229.5	46.344.229.5	19.25	18.25
GDQ5-400-4P	315-400A	1	50.530.533	50.530.533	17.85	16.85
GDQ5-630-4P	500-630A	1	50.530.533	50.530.533	18.75	17.75
GDQ5-1000-4P	800-1000A	1	714037	714037	46.5	44.5
GDQ5-1250-4P	1250A	1	714037	714037	50	48
GDQ5-1600-4P	1600A	1	714037	714037	55	53
GDQ5-2000-4P	2000A	1	715060	715060	91	89
GDQ5-2500-4P	2500A	1	715060	715060	101	99
GDQ5-3200-4P	3200A	1	715060	715060	111	102
