Upgrade Your Protection with 2p and 3p Surge Protector Device 20-40ka SPD 600V 1000V

Name: Upgrade Your Protection with 2p and 3p Surge Protector Device 2040ka SPD 600V 1000V
Brand: Golden Electric /OEM
Price: 1 USD

Wholesale Upgrade Your Protection with 2p and 3p Surge Protector Device 20-40ka SPD 600V 1000V from china suppliers

Model NO. : E-110 SERIES

Application : AC/DC System

Size : Small

Operation Voltage : High Voltage

Shape : Module

Material : Nylon

Certification : ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Brand : Golden or OEM

Voltage : DC 500V, 550V, 800V, DC1000V(3p) 1200V, 1500V

Us(Ka) : 20ka

Imax(Ka) : 40ka

Series : DC SPD, Surge Protector, Surge Protective Device

Color : Orange

Altitude : 2000

Where to Use : Solar PV DC System

Terminal Screwa : M5

Indication : Green(Good) Red(Replace)

Class Test : II

Transport Package : Standard Export Carton

Specification : 2p and 3p

Trademark : Golden or netural or customer brand

Origin : China

HS Code : 8536300000

Supply Ability : 5000/Month

Package Size : 10.00cm * 8.00cm * 5.00cm

Package Gross Weight : 1.000kg

Type : Power Source Arrester

Structure : Plugable

Installation : DIN Rail

Samples : US$ 5/Piece 1 Piece(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Brand Name : Golden Electric /OEM

MOQ : 1

Packaging Details : Carton/Pallet

Delivery Time : Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, PayPal, Western Union

Contact Now

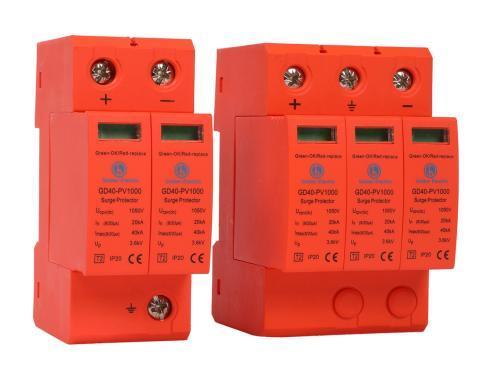

High Quality Manufacture DC 2p 3p Power Surge Protector 20-40ka

This solar spd 20KA-40KA SPD is applied to provide fine overvoltage protection of electronic equipment whose power is supplied by direct-current power supply.
It is D-level overvoltage protection device, is design according to IEC and GB standard,
It is available in a variety of different power supply voltage and selector corresponding specifications.
It is use for high temperature resistant plastic with excellent tightness, and easy to install wiring.

Upgrade Your Protection with 2p and 3p Surge Protector Device 20-40ka SPD 600V 1000V

HIGH QULITY
Module design, convenient installation,with easy electric maintains operation
Built-in over current and over heat, temperature control open circuit technology

EXCELLENT DESIGN
Adopt independent intelligence property right and high performance sensitivity resistance plates
Small creepage current,fast response time, remnant low voltage
With remote connection, can realize remote control.

solar surge protector		GDPS-4		GDPS-4
PV DC specific (LEC 6614-1/EN 61643-11)
Pole		2 pole				3 pole
Electrical Parameter
Classifical test		II				II
Uoc max (V DC)		530	840		1060	1060
Uc (V DC)		500	800		1000	1000
In(8/20)us (KA)		20				20
Imax(8/20)us (KA)		40				40
Up (KV)		2				3.8
Remote control and indication
Indication window
Plug-in module
Remote signal contact
Remote signal contact	Max working volt	250V AC/30V DC				250V AC/30V DC
	Max working amp 1A (250V/AC)	1A (250V/AC)				1A (250V/AC)
	1A (30V DC)	1A (30V DC)				1A (30V DC)
Wiring & installation
Wiring capacity(mm2)	Hard wire	4-25				4-25
	Flexible wire	4-16				4-16
Stripping length		10				10
Terminal screwa		M5				M5
Torque(Nm)	Main ciruit	3.5				3.5
	Remote signal contact	0.25				0.25
Protection class	All profile	IP40				IP40
	Connection port	IP20				IP20
Installation environment		No obvious shock and vibration
Altitude(m)		≤ 2000				≤ 2000
Working temperature		67				67
Relative humidity		30%-90%				30%-90%
How to install		Install with H35-7.5/DIN35 stell mounting rail
Size(mm) (WHL)	W	36				54
	H	90				90
	L	67.6				67.6
Weight (KG)		0.27				0.4

Nominal PV system volt	600V	1000V	1200V
MCOV(UCPV)	700V DC	1170V DC	1200V DC
Max system discharge Current (8/20us) (Imax)	40KA	40KA	30KA
Volt protection leve (UP)	≤ 2.5KV	≤ 4.0KV	≤ 4.5KV
Volt protection Level at 5KA (UP)	≤ 2.0KV	≤ 3.5KV	≤ 4.0KV
Integrate fuse breaking capacity/interrupting rating	30KA/1000V DC	30KA/1000V DC	30KA/1200V DC
Technology	Short-circuit interruption (SCI) overcurrent protection
Operating temperature range	-40 to +80
Nominal discharge current	12.5KA
Response time (ta)	<25ns
Operating state/fault indication	Green (good) / Red (replace)
Mounting	35mm DIN Rail per EN 60715
Degree protection	IP20
capacity	3 modules DIN 43880

Surge Protective Device Arrester Dimensions:

Surge Protective Device Arrester Packing List:

Name	Specification	Packing quantity	GW/ctn	Carton size
GDPS-4 DC	2P/20~40KA/DC500V	60	18.5	423216.5cm
GDPS-4 DC	2P/20~40KA/DC800V	60	18.5	423216.5cm
GDPS-4 DC	2P/20~40KA/DC1000V	60	19	423216.5cm
GDPS-4 DC	3P/20~40KA/DC100V	40	18.3	423216.5cm
GDPS-4 DC	2P/20~40KA/DC1200V	40	19.3	423216.5cm

Packaging Details:

Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, other
packing can be supplied according customers request.

Shipping:
1. By Air or by Sea for batch goods,Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!

Delivery Detail:
Shipped in 7 days after payment

- Golden Electric Co.,Ltd ,was foundad in 2017, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Solar product and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.

Q1: If I'm interested in your Solar SPD when I can receive your quotation and detail information after send the enquiry?

A:All your enquiry will be replied in 8hours.

Q2:Your Solar SPD seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!

A: Our DC SPD is special for Solar system all the parts in the SPD are high quality customized.Not all the DC SPD are Solar SPD!

Q3:Can I get a sample before the order because I really don't how is your DC SPD quality?

A:Of course!We also think sample order is the best way to build the trust.

Q4:How's the delivery?Because I really need them is urgently?

A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.

Q5:How's the warranty period for your DC SPD?

A:We offer one year warranty for our customer.
