GoldenElectricCo., Ltd.
is professional make of Electrical products .Such as distribution box, waterproof plug, socket, wall switch, waterproof plastic ,Aluminum box ,Changeover Switch and disconnecting switch,MC4 Connector.isolator switch.fusebreaker.distribution box,PV combiner box .surge protector, Indicatorlamp,Solar Charge Controller,Industrialplugandsocket,BusbarInsulator,Meter Socket,Wind Turbine, Terminal Block,Solar product and so on. all products comply with IEC, A S/NZS standard. passed CE, IP66, ROHS certificates.at present we have exported to many countries and have serve these customers with professional electrical solution.

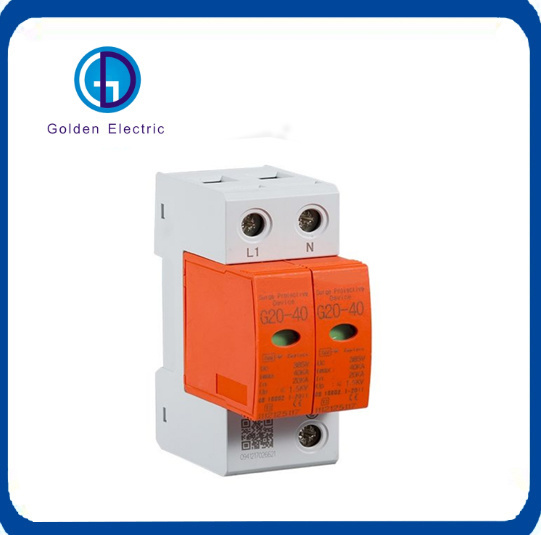

G20-40 series series secondary power surge protectors are designed according to IEC and GB standards. The products with powerful surge release capability, each of the maximum discharge current 20~80kA(8/20μs), applicable to low-voltage distribution system protection at all levels, according to different distribution systems (TT/TN/IT) can choose a variety of combinations.
| G2040MT |
| Type | G2040MT/XXX/1P.2P.3P.4P |
| 150 | 175 | 200 | 275 | 280 | 320 | 335 | 385 | 440 |
| in accordance with | IEC61643-11:2011;UL1449-4th |
| Category IEC/UL | Typeπ,T2 |
| Maximum continuous operating voltage(UC) AC | 150V | 175V | 200V | 275V | 280V | 320V | 335V | 385V | 440V |
| Maximum continuous operating voltage(UC) DC | 150V | 200V | 225V | 350V | 420V | 505V | 560V | 620V | / |
| Nominal discharge current(8/20us) In | 20kA |
| Maximum discharge current(8/20us) Imax | 40kA |
| Voltage protection level(Up) | ≤1.0kV | ≤1.2kV | ≤1.2kV | ≤2.2kV | ≤2.2kV | ≤2.2kV | ≤2.2kV | ≤2.4kV | ≤2.5kV |
| Product Size | 72*90*69mm |
| Core component | Varistor |
| Response time ta | ≥25ns |
| Protection grade | IP20 |
| Normal working temperature | -40ºC~+80ºC |
DC Moulded Case Circuit Breaker for Solar System Knife Change Over Switch
Automatic Recovery Over and Under Voltage Protector Device Waterproof Socket Insulator Socket Box
Selling Units: Multiple of 48
Package size per batch: 34X34X17 cm
Gross weight per batch: 11.800 kg
Lead time:
| Quantity(pieces) | 1 - 144 | 145 - 480 | 481 - 960 | >960 |
| Lead time (days) | 3 | 7 | 15 | To be negotiated |
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices vary.
Any more query please contact with us, thank you!
